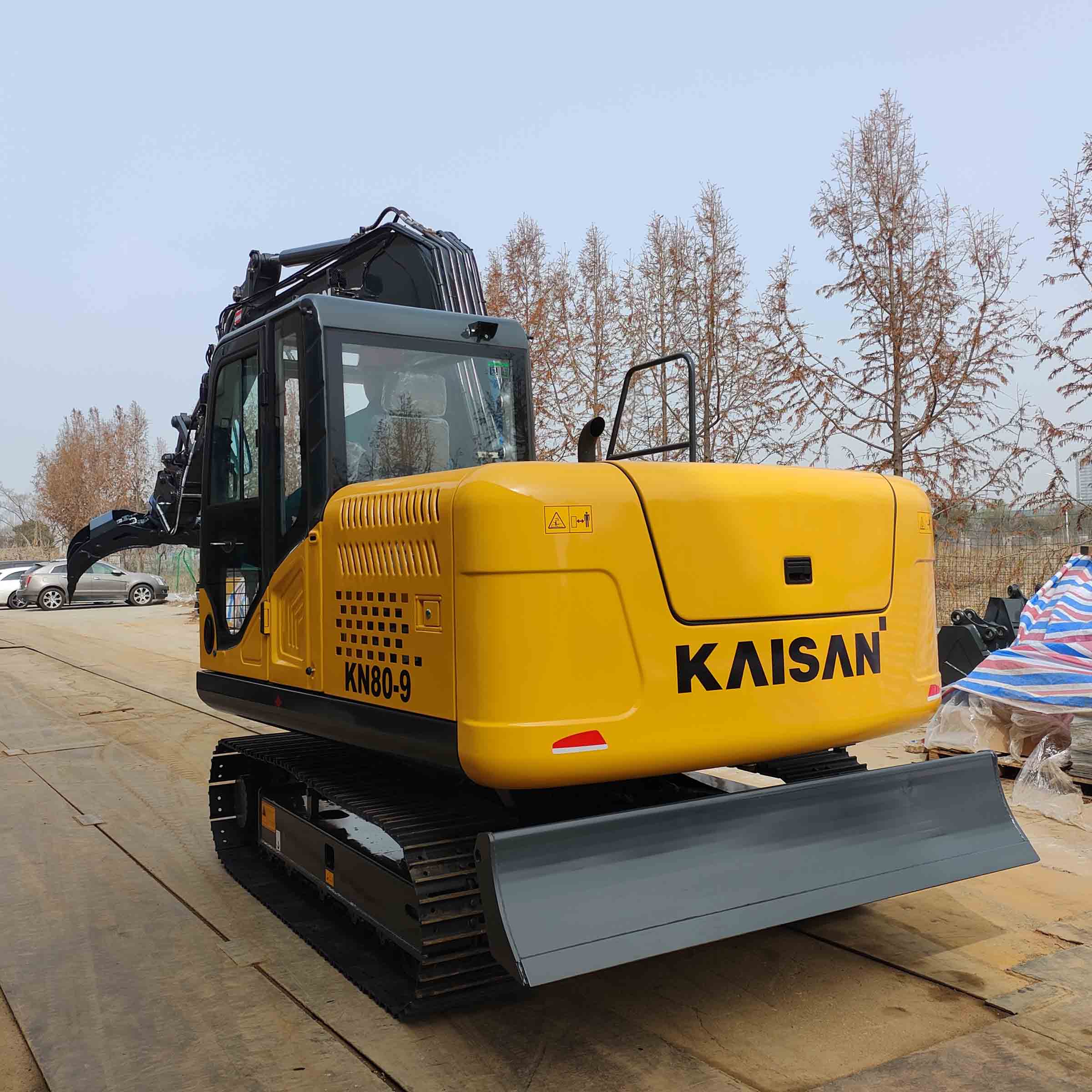

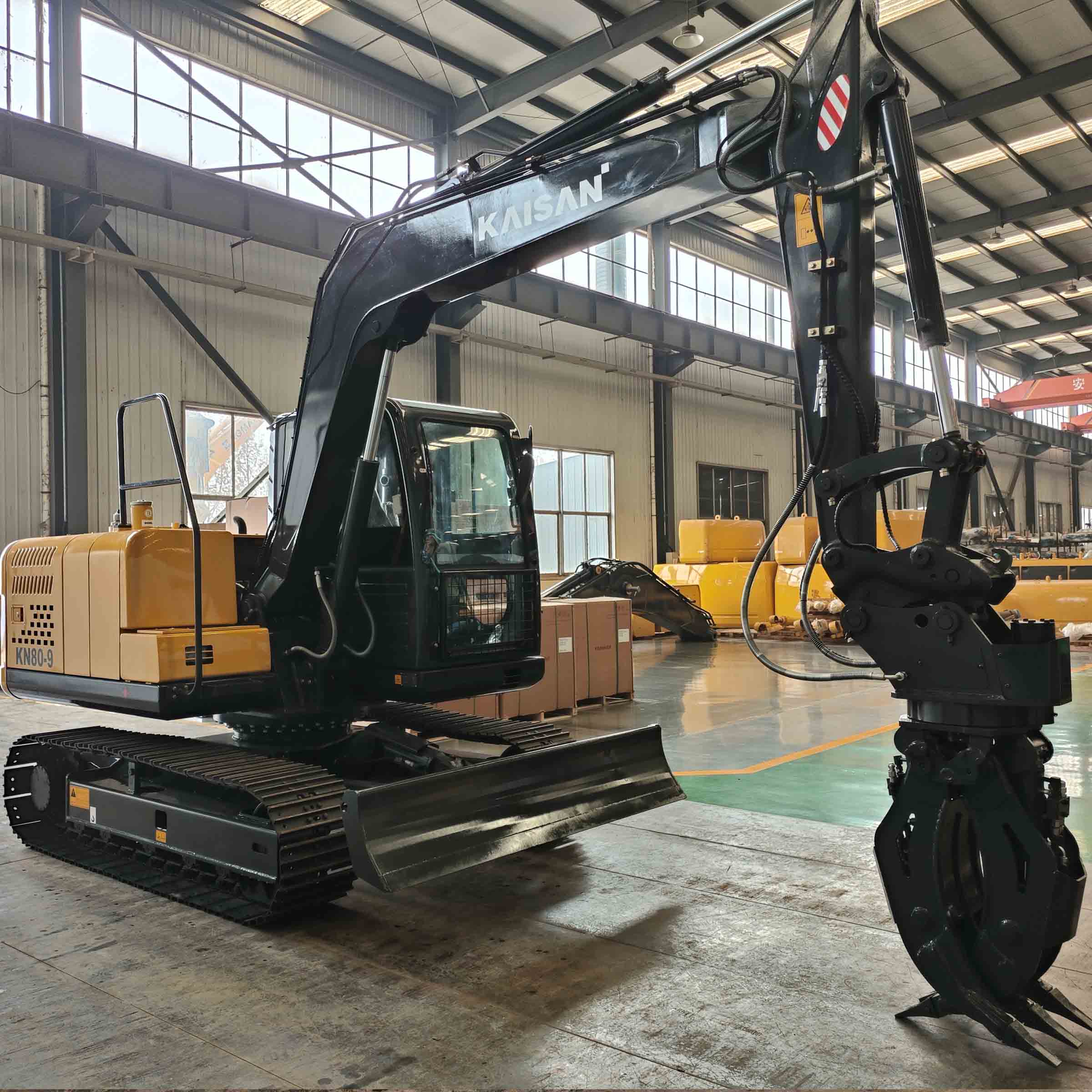

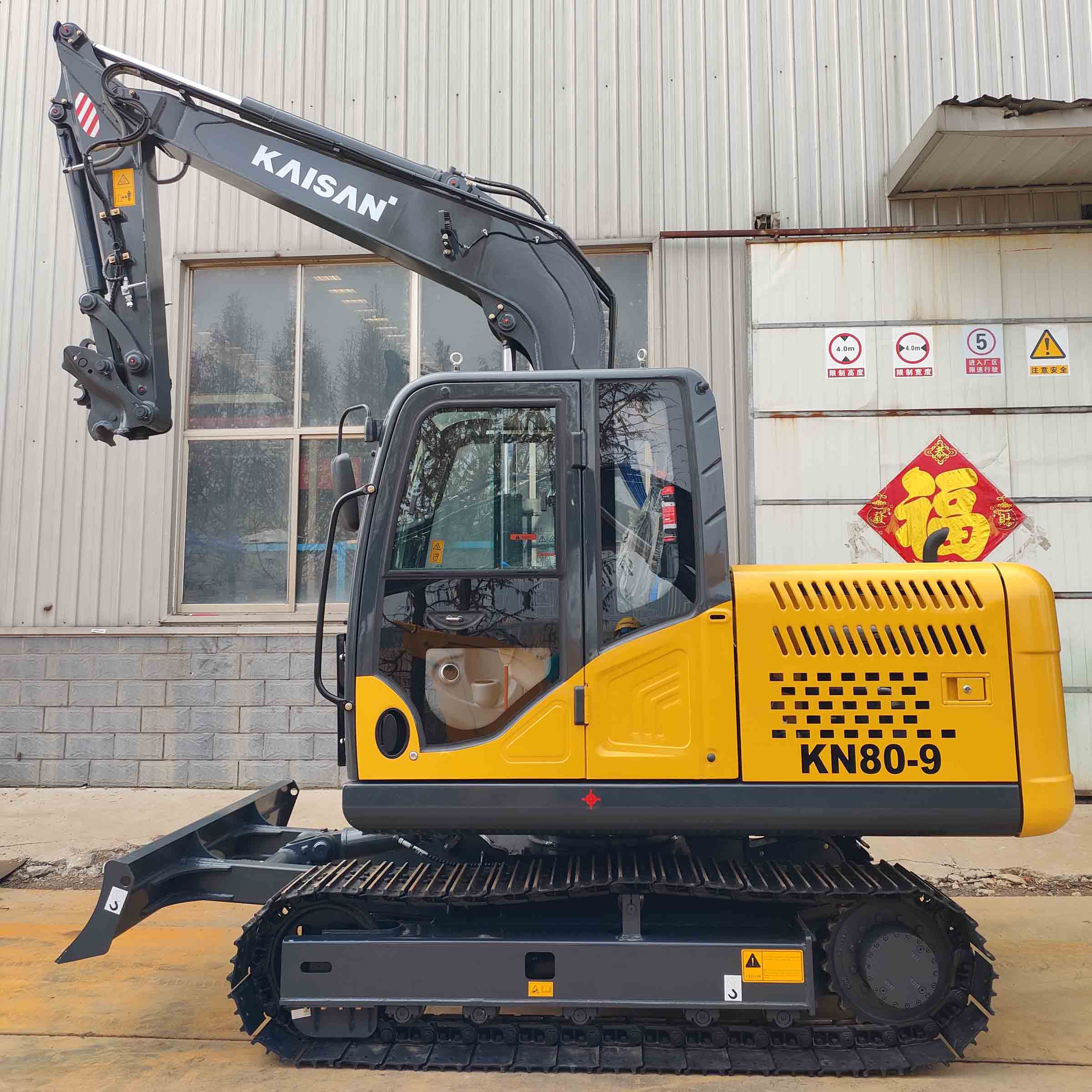

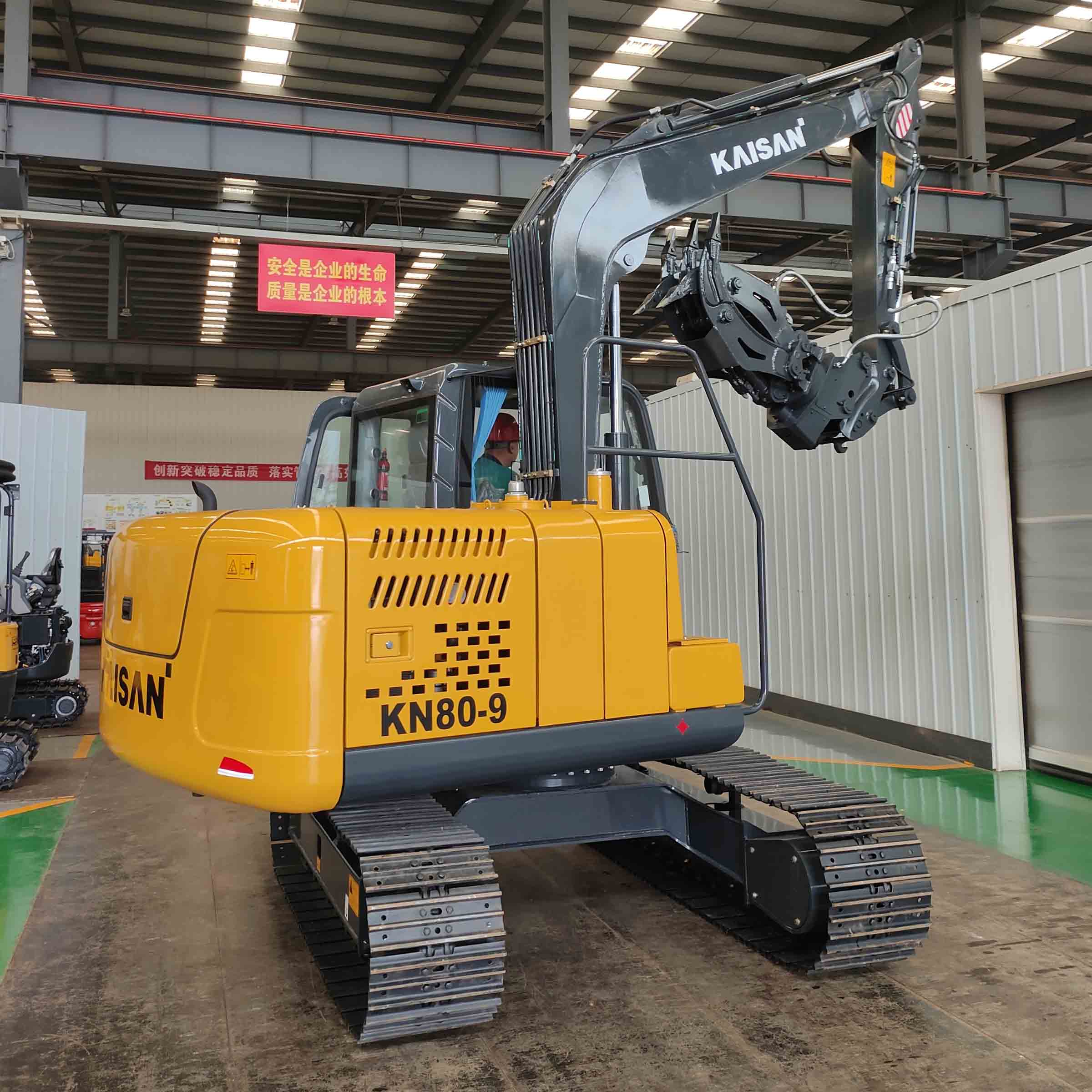

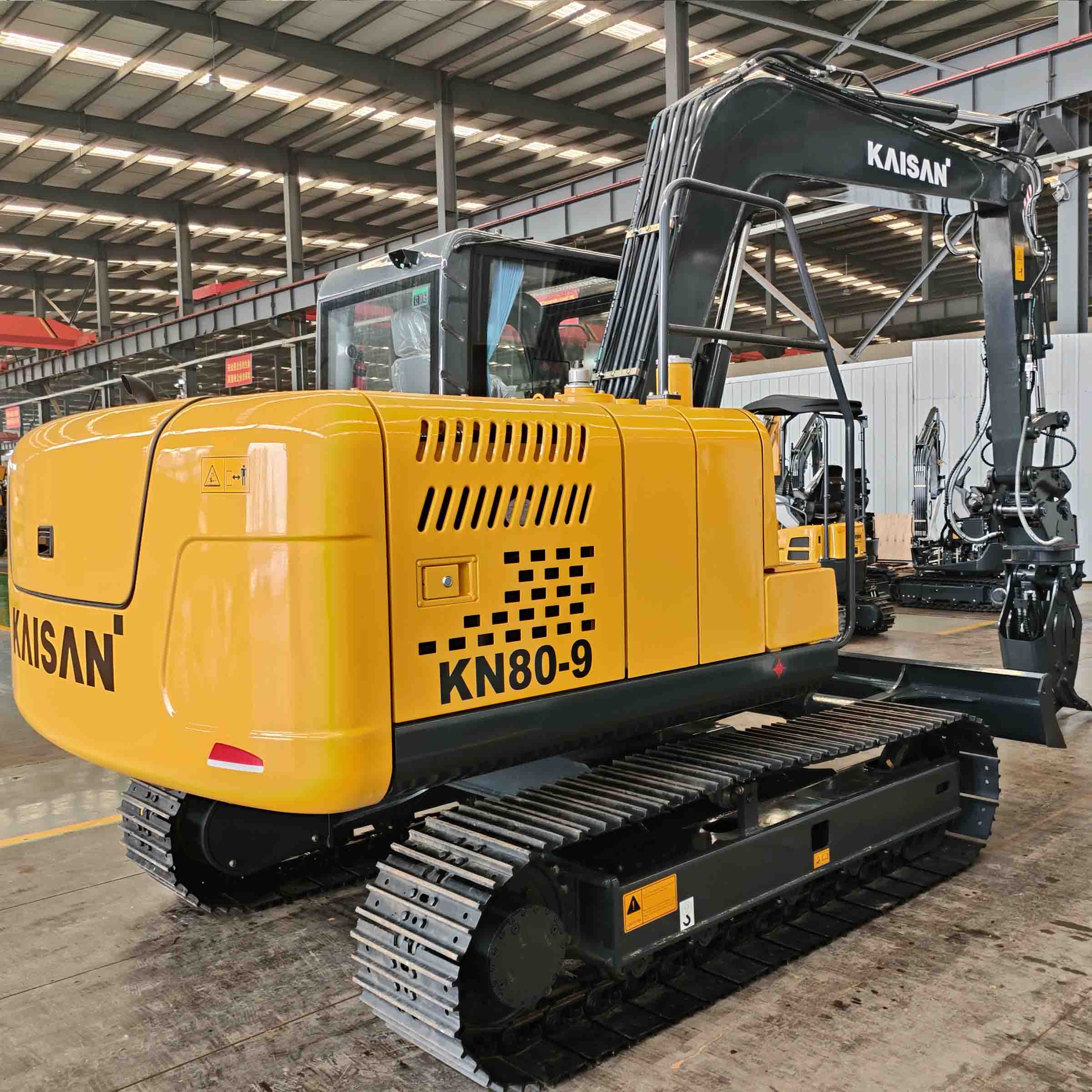

8 Ton Crawler Excavator
The KN80-9 crawler excavator total machine weight is 8500 KG. It use Japanese Yanmar engine with a rated power of 54.3 KW/H. It is a four cylinder engine. The machine has strong power and better stability, meets EURO V and EPA Tier four emission standards, and has excellent combustion efficiency and low emission characteristics. The hydraulic pumps and valves use Germany INLINE, and the swing motors and traveling motors use EDDIE. High efficiency and energy saving are the highlights of this excavator. KN80-9 also has a closed cabin and air conditioning, which is warm in winter and cool in summer, making the operator more comfortable.
Since 1995, KAISAN factory has established itself as a leading manufacturer specializing in wheeled excavators, crawler excavators, and mini dumpers. Our commitment to excellence is evident in every product we create, adhering rigorously to the highest standards of quality. Our extensive lineup of machinery has been distributed to more than 50 countries and regions globally, supported by a robust network of representatives spanning Europe, Australia, New Zealand, South Asia, and beyond.
Our range of wheeled excavators, ranging from 5 to 12 tons, provides versatile solutions suited for diverse applications. Our crawler excavators, available from 0.8 tons to 12 tons, are renowned for their outstanding performance and durability, excelling in tackling even the most demanding tasks effortlessly. Additionally, our mini dumpers offer compact and efficient solutions for effectively transporting heavy loads.
Model | KN80-9 |
Manufacturer | SHANDONG KAISAN MACHINERY CO.,LTD |
Brand | KAISAN |
Operating Weight | 8500kg |
Overall dimension | 6100x2300x2680mm |
Bucket capacity | 0.34cbm |
Engine | |
Engine type | YANMAR(4TNV98T) |
Rated power/speed | 54.3kw/2200rpm |
Voltage of start motor | 12V |
Starting type | ELECTRIC |
Hydraulic system | |
Hydraulic main pump | Germany INLINE |
Hydraulic system pressure | 24.5MPa |
Hydraulic system flow | 165L/Min |
Pilot pump | Germany INLINE |
Pilot pump max flow | 9L/Min |
Valve | Germany INLINE |
Swing motor | Germany INLINE |
Max swing speed | 10r/min |
Travel motor | EDDIE |
Max travel speed | 5.1km/h |
Sealing parts | USA PARKER |
Gear | high 5.17km/h, low 2.7/km/h |
Bucket dimension(length*width*depth) | 760*660*460 |
No. of teeth | 5 |
Bucket Digging Force | 52Kn |
Arm Digging Force | 64Kn |
Grade ability | 70 Degree |
Tanks | |
Working fuel consumption | 6.58L/h |
Fuel tank capacity | 130L |
Engine oil tank capacity | 11L |
Hydraulic oil tank capacity | 90L |
Cooling fluid tank capacity | 20L |
Overall size | |
Shipping Length | 6100mm |
Shipping Height | 2680mm |
Shipping Width | 2300mm |
Boom length | 3710mm |
Arm length | 1650mm |
Radius,Swing Center to Rear End | 1755mm |
Count weight height | 1685mm |
Count weight ground clearance | 760mm |
Ground clearance | 380mm |
Blade height | 360mm |
Track length on the ground | 2150mm |
Length of two tracks | 1700mm |
Track shoe width | 450mm |
Operating range | |
Max Digging Height | 7165mm |
Max Dumping Height | 5065mm |
Max Digging Depth | 4035mm |
Max Digging Radius | 6180mm |
Standard machine with A/C | AC |
At KAISAN, our team of experienced engineers and technicians is passionately dedicated to ensuring that each machine meets rigorous quality standards. Our commitment to excellence, safety, and reliability is unwavering, establishing us as a foremost manufacturer of durable heavy-duty machinery.
1.Customer Satisfaction Guaranteed
Ensuring your experience with us is positive and fulfilling is our top priority. We proudly stand behind every product we offer.
2.Pre-Sales Support
Contact us at any stage to explore unexpected benefits and discuss future development opportunities. Leveraging our extensive sales and production expertise, we aim to enhance profitability and mutual growth.
3.Tailored Solutions
By carefully analyzing customer needs, we assist in selecting the most suitable machinery. Our approach includes providing relevant samples and tailored suggestions based on production scale and technical requirements.
4.Dedicated Sales Support
We are committed to promptly addressing customer inquiries with dedicated support. Our services include advice on venue selection, cost-saving strategies, and maximizing machine value.
5.Comprehensive After-Sales Support
(1)On-Site Support: Our technicians provide on-site assistance in China, supplemented by 24/7 online support for international clients.
(2)Warranty Coverage: We offer free replacement of machine parts damaged under normal use during the warranty period.
(3)Contract Renewal: Consider renewing your contract post-warranty to maintain the high level of service enjoyed during the warranty period.
(4)Service Excellence: We continuously enhance our staff's service attitude to promptly improve overall service satisfaction.
Q: Are you a manufacturer or a trading company?
A: We are a manufacturer.
Q: Can you provide customization options for mini dumpers?
A: Yes, we can offer customization options for mini dumpers based on specific requirements. This includes modifications
in engine power, load capacity, dumping mechanisms, and additional features such as cabin enclosures or specialized attachments.
Q: What is your minimum order quantity (MOQ)?
A: Our MOQ is one unit.
Q: What is the lead time for orders?
A: Normally 7-10 days or 15-25 days upon receiving the advance payment.
Q: What are your accepted payment terms?
A: We typically accept payment by bank transfer (wire transfer) or letter of credit (L/C).
Q: Do you provide product warranties?
A: Yes, normally 1 year OR 2000 hours.
