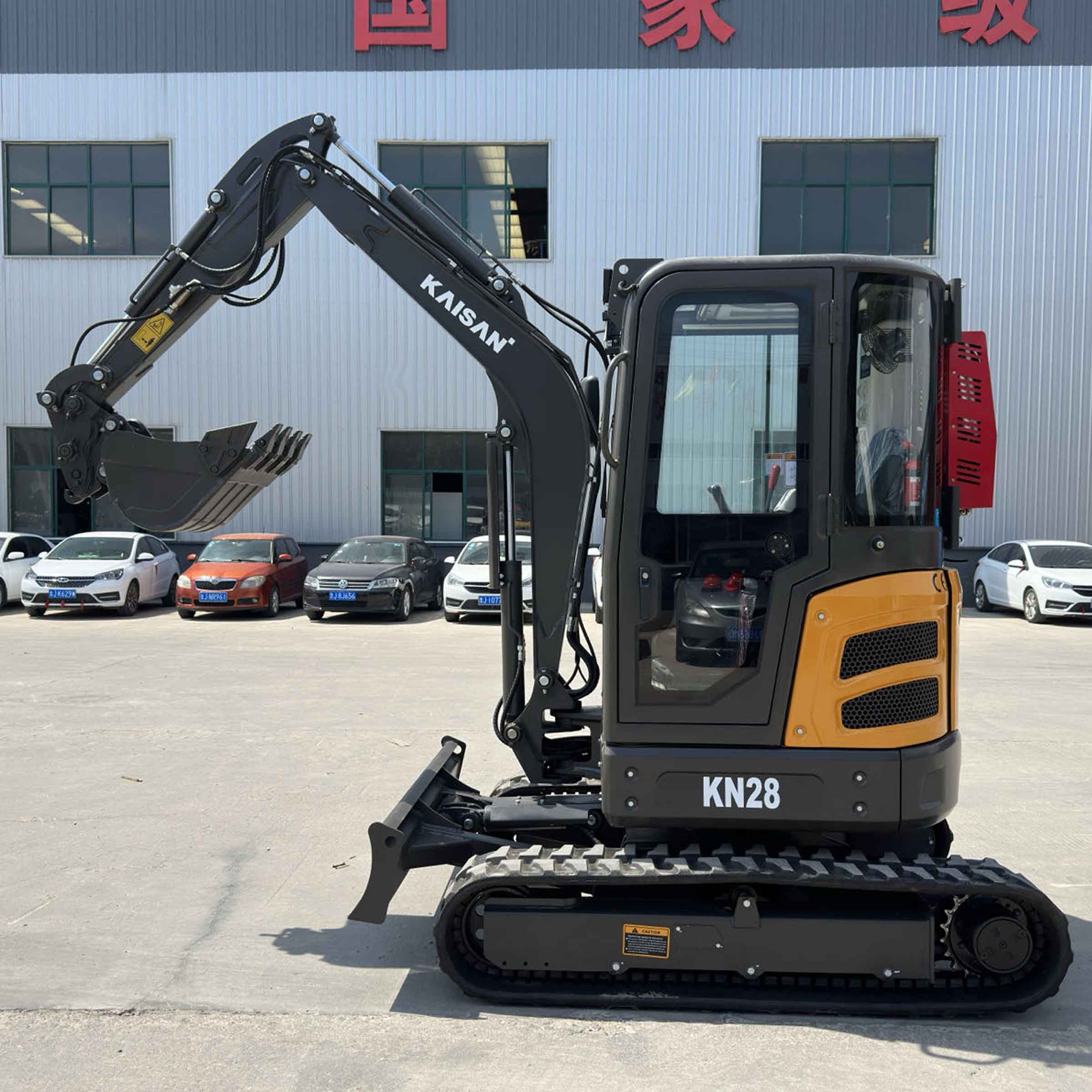

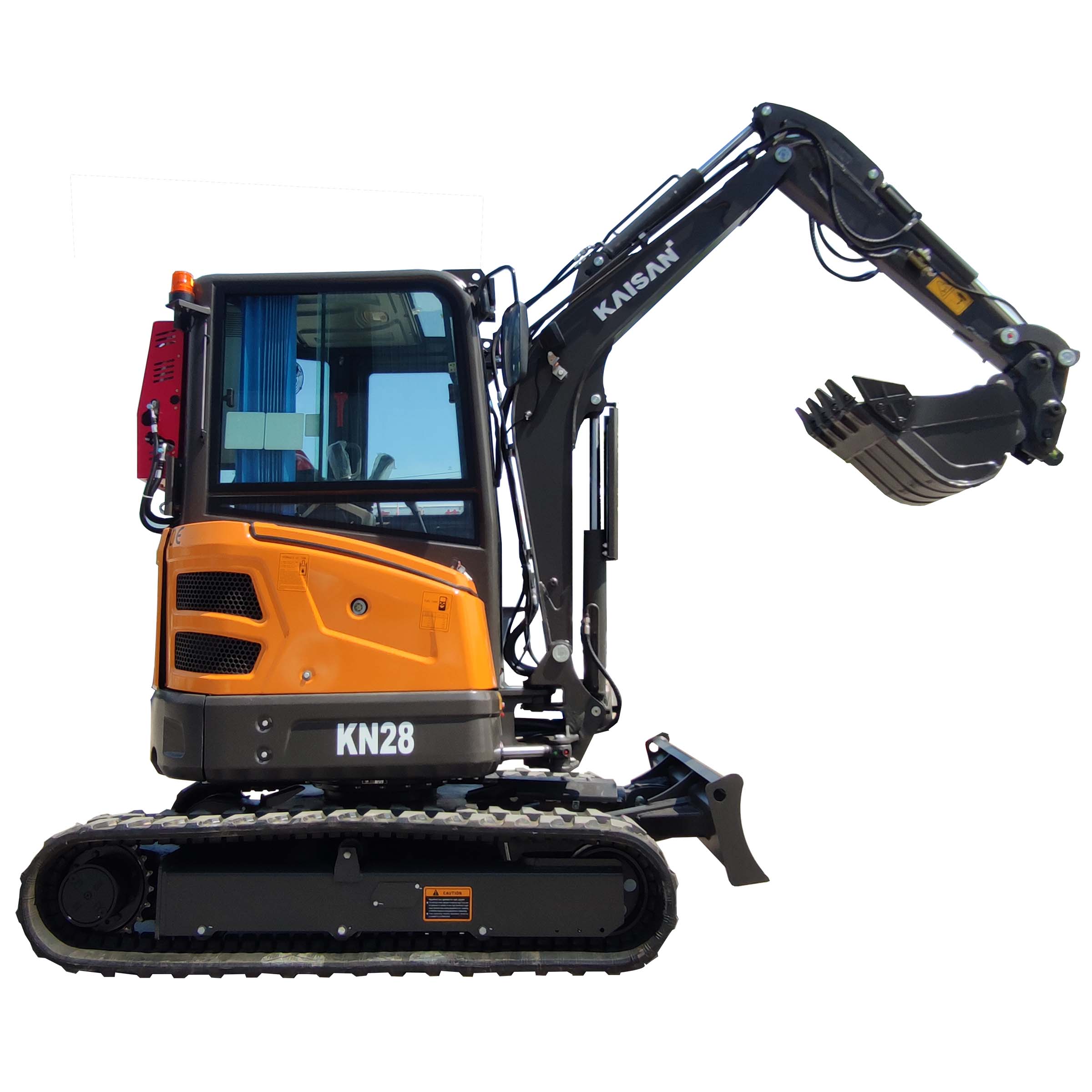

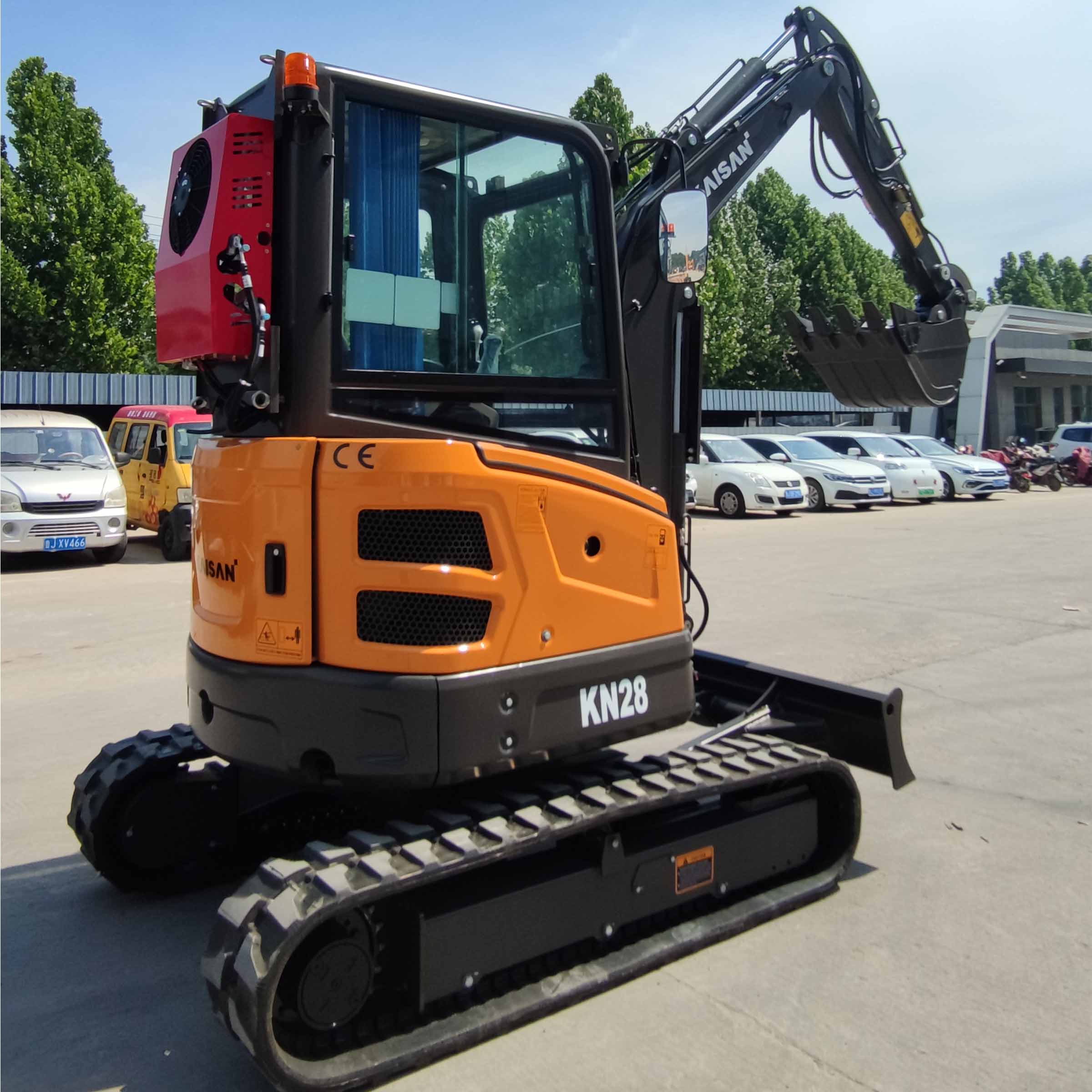

2.8 Ton Micro Crawler Excavator

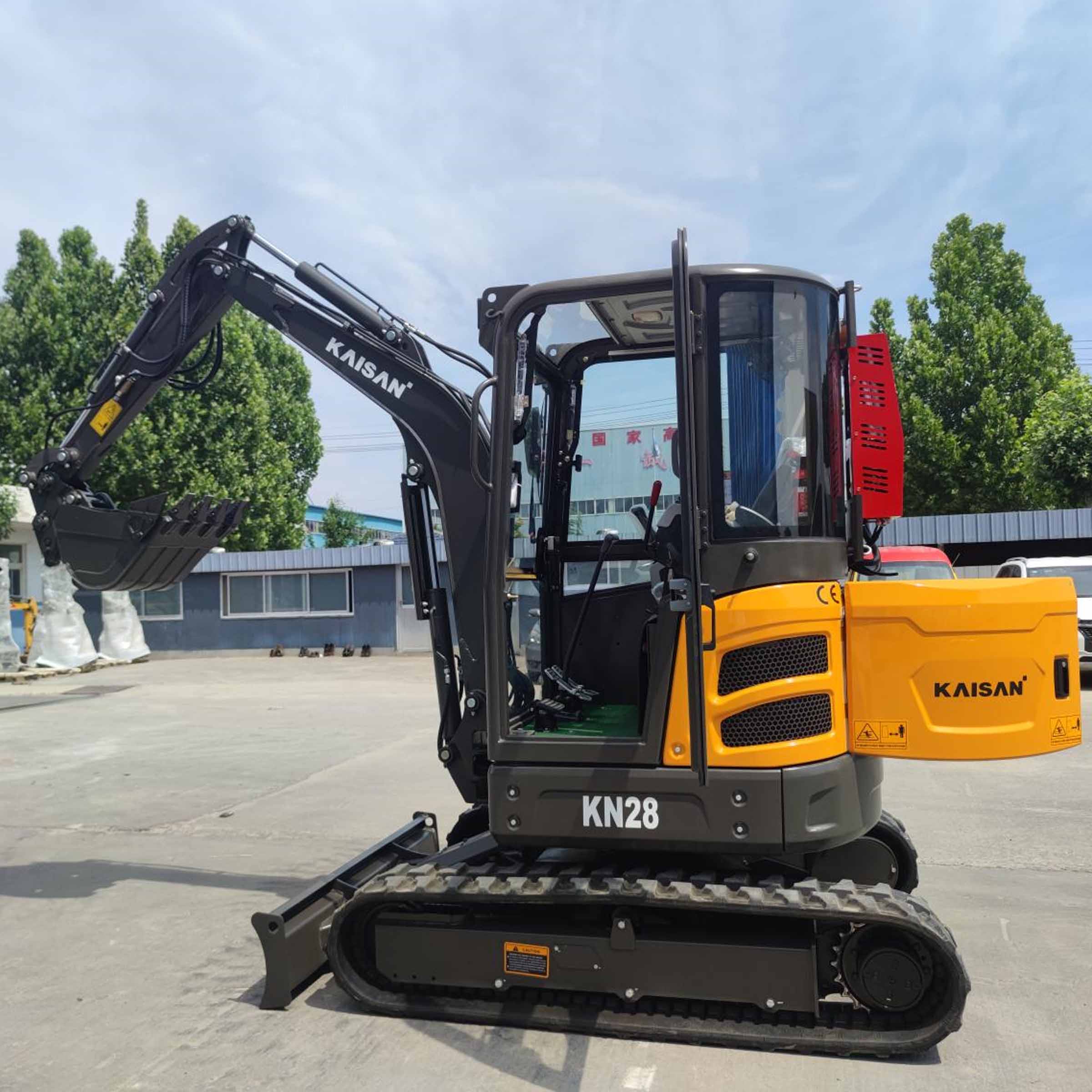

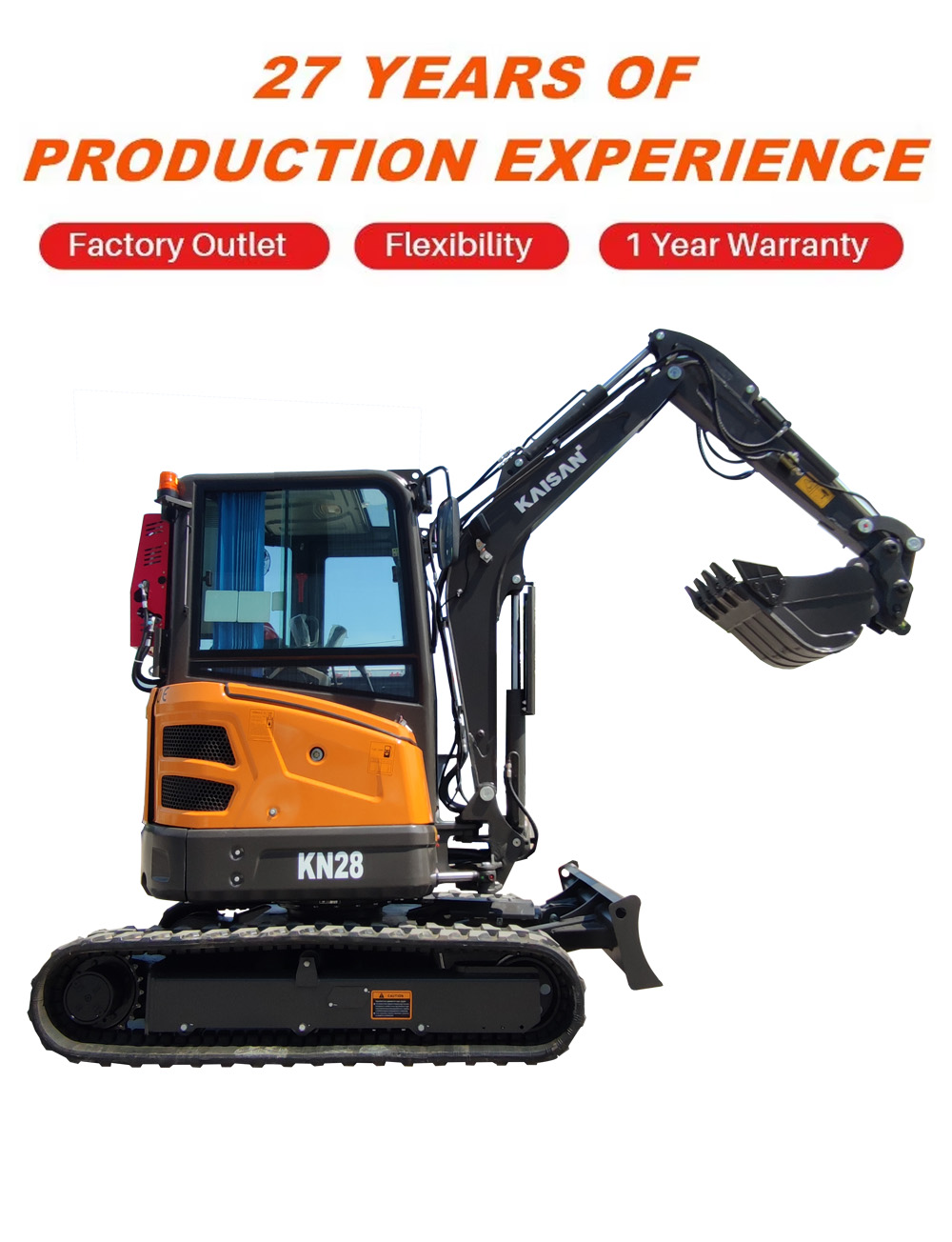

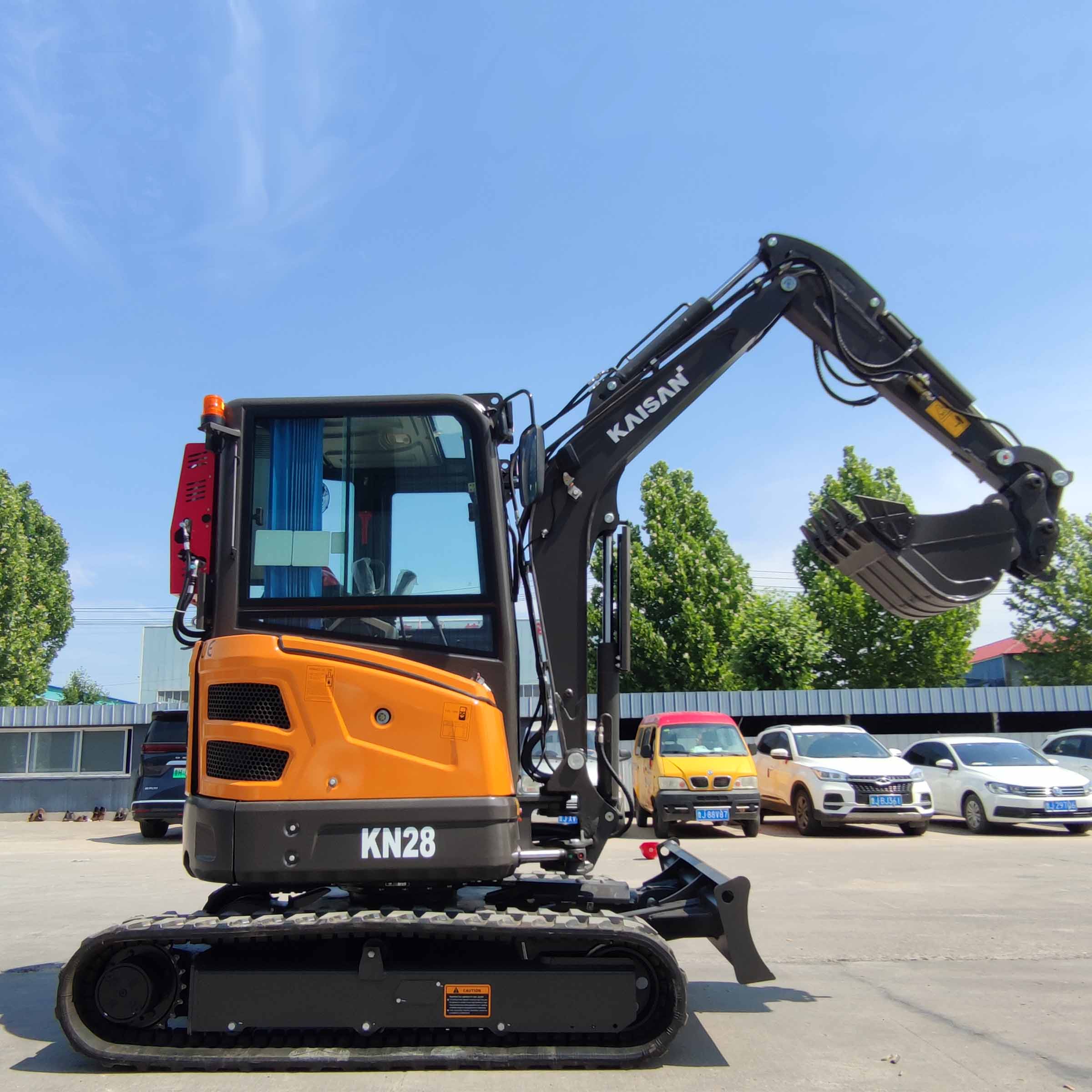

KN28 mini excavator, uses a Japanese KUBOTA D1105 engine, 14KW and closed cabin.

• Powerful engine: The excavator is equipped with Japanese KUBOTA that delivers exceptional power and torque, ensuring maximum efficiency and productivity.

• Advanced hydraulic system: The hydraulic system is designed to provide smooth and precise control, allowing you to work with greater accuracy and speed.

• Compact size: The excavator’s compact size makes it easy to maneuver in tight spaces, allowing you to work in areas inaccessible to larger machines.

  Contact Now E-Mail Telephone WhatsApp
Product Details

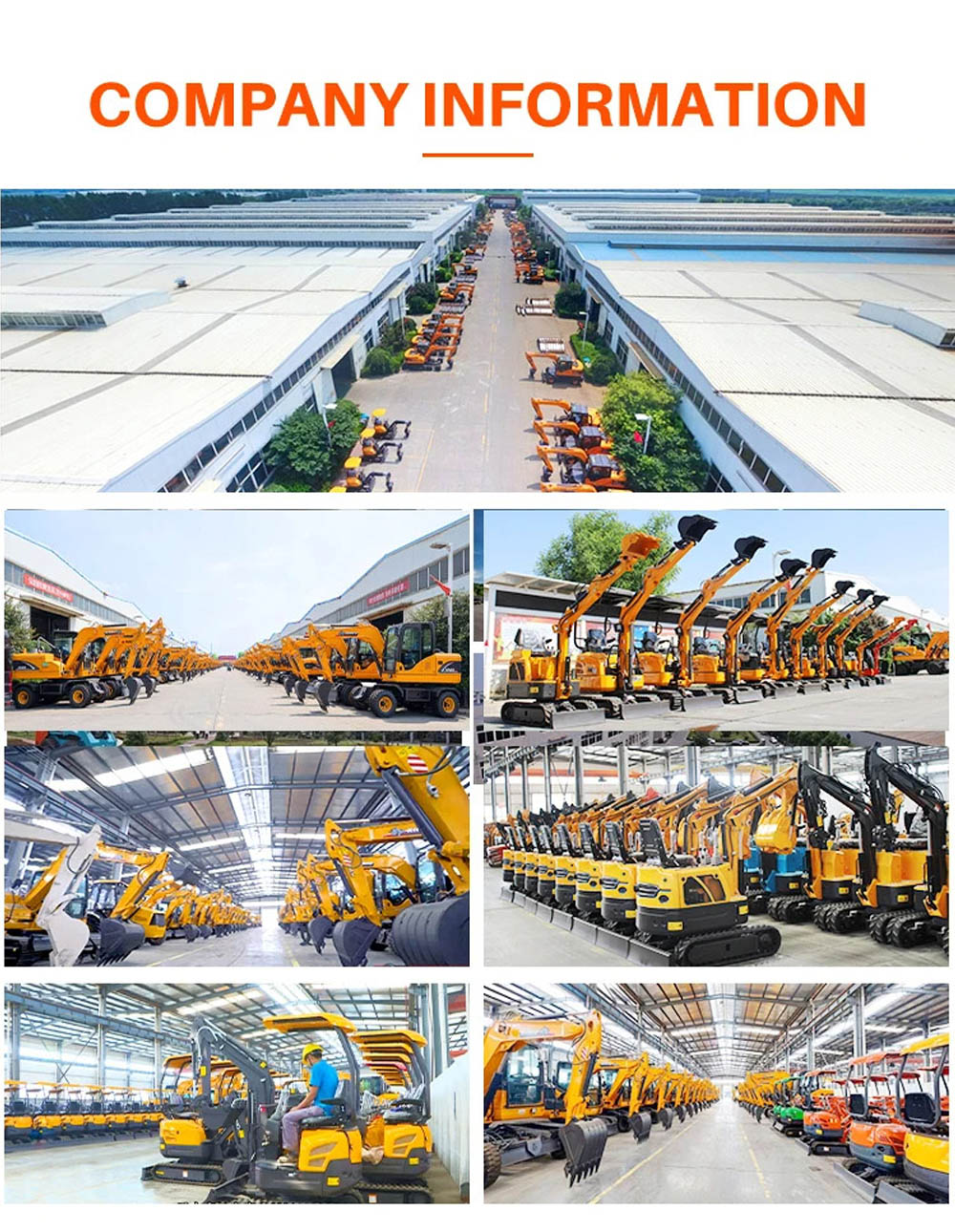

Since 1995, KAISAN factory has been a trusted manufacturer of wheeled excavators, crawler excavators, and mini dumpers, consistently delivering products that meet rigorous standards. Our extensive reach spans over 50 countries and regions worldwide, supported by a comprehensive network of representatives across Europe, Australia, New Zealand, South Asia, and beyond. Our wheeled excavators range from 5 to 12 tons, providing versatile solutions for various applications. Meanwhile, our crawler excavators, available from 0.8 tons to 12 tons, are renowned for their exceptional performance and durability, capable of tackling the most demanding tasks effortlessly. Additionally, our mini dumpers offer a compact and efficient solution for transporting heavy loads with ease.

2.8 Ton Micro Crawler Excavator

2.8 Ton Micro Crawler Excavator

Model

KN28

Manufacturer

SHANDONG KAISAN MACHINERY CO.,LTD

Brand

KAISAN

Operating Weight

2750kg

Overall dimension

4195x1550x2480mm

Bucket capacity

0.1cbm

Engine

Engine type

KUBOTA D1105

Rated power/speed

14kw/2200rpm

Voltage of start motor

12V

Starting type

ELECTRIC

PERFORMANCE PARAMETER

Traveling speed

2.6/4.5 km/h

Maximum Grade ability

58%(30°)

Ground pressure

24Kpa

Maximum Bucket digging force

23.5Kn

Maximum Arm digging force

14Kn

Hydraulic system pressure

20.5Mpa

Hydraulic flow

61.6L/min

Boom length

2200mm

Arm length

1300mm

Fuel tank capacity

23L

Hydraulic oil tank capacity

24L

Main dimension

Length of rubber track

1565mm

Track gauge

1670mm

Minimum Ground clearance

286mm

Swing radius at tail

860mm

Swing radius at front

2160mm

Height of blade

308mm

Operating range

Maximum Digging height

4427mm

Maximum Dumping height

3005mm

Maximum Digging depth

2830mm

Maximum Vertical digging depth

2530mm

Maximum Digging distance

4835mm

Maximum Lifting height of blade

308mm

Maximum Cutting depth of blade

363mm

Boom swing angle(Left/Right)

69°/  45°

Quotation

KUBOTA engine, closed cabin with A/C, swing boom included

USD 16500 / unit FOB QINGDAO

2.8 Ton Micro Crawler Excavator

2.8 Ton Micro Crawler Excavator

2.8 Ton Micro Crawler Excavator

2.8 Ton Micro Crawler Excavator

2.8 Ton Micro Crawler Excavator

2.8 Ton Micro Crawler Excavator

At KAISAN, our dedicated team of skilled engineers and technicians works diligently to uphold stringent quality standards for all our machines. We are deeply committed to ensuring the utmost in quality, safety, and reliability, which has solidified our position as a premier manufacturer of heavy-duty machinery.

2.8 Ton Micro Crawler Excavator

2.8 Ton Micro Crawler Excavator

2.8 Ton Micro Crawler Excavator


2.8 Ton Micro Crawler Excavator

2.8 Ton Micro Crawler Excavator

2.8 Ton Micro Crawler Excavator

1.Positive Customer Experiences

We are dedicated to ensuring your experience with us is positive, standing firmly behind every product we offer.

2.Pre-Sale Services

Whether or not we initiate a partnership, feel free to contact us. You may discover unexpected benefits. Drawing on our extensive experience in sales and production, we can collaboratively explore future developments in this field, enhancing profitability and mutual growth.

3.Customized Services

By carefully assessing customer requirements, we assist in selecting the most suitable machinery. We provide relevant samples and thoughtful suggestions tailored to production scale and technical specifications.

4.Sales Services

We respond promptly and thoughtfully to customer inquiries. Our commitment extends to offering advice on venue selection, cost-saving strategies, and maximizing the value of our machines.

5.After-Sales Services

(1)Our technicians provide on-site support for customers in China, while international customers benefit from round-the-clock online assistance. Upon request, we arrange for technicians to travel abroad for installation or maintenance.

(2)During the warranty period, we replace damaged machine parts free of charge under normal usage conditions.

(3)Post-warranty, consider renewing the contract to continue receiving the same level of service.

(4)We continuously evaluate our staff's service attitudes to promptly enhance overall service satisfaction.

2.8 Ton Micro Crawler Excavator

2.8 Ton Micro Crawler Excavator

Q: Are you a manufacturer or a trading company?

A: We are a manufacturer.



Q: Can you provide customization options for mini  dumpers?

A: Yes, we can offer customization options for mini dumpers based on specific requirements. This includes modifications

in engine power, load capacity, dumping mechanisms, and additional features such as cabin enclosures or specialized attachments.



Q: What is your minimum order quantity (MOQ)?

A: Our MOQ is one unit.



Q: What is the lead time for orders?

A: Normally days 15-25 or 7-10 days upon receiving the advance payment.



Q: What are your accepted payment terms?

A: We typically accept payment by letter of credit (L/C) or bank transfer (wire transfer).



Q: Do you provide product warranties?

A: Yes, normally 2000 hours OR 1 year .
