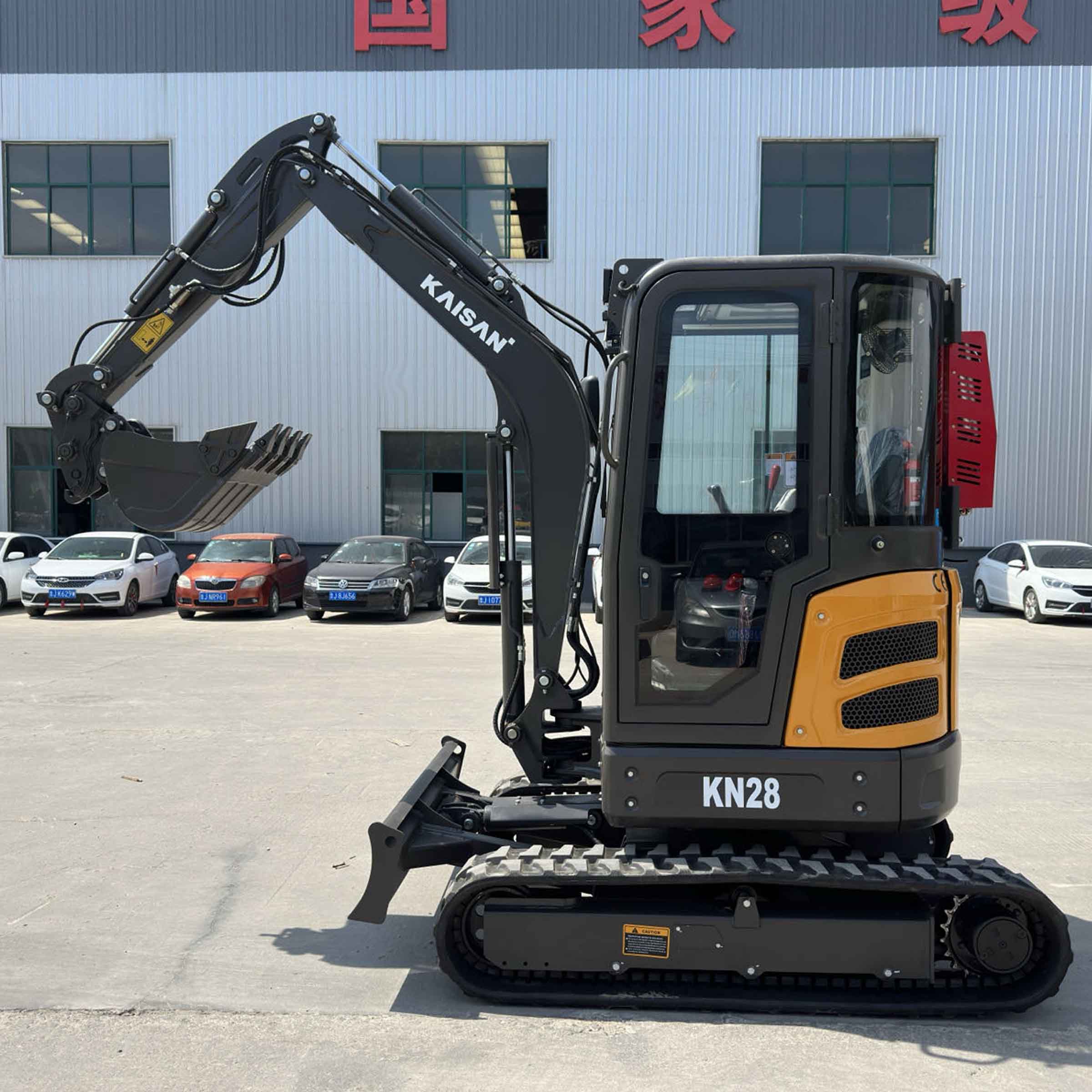

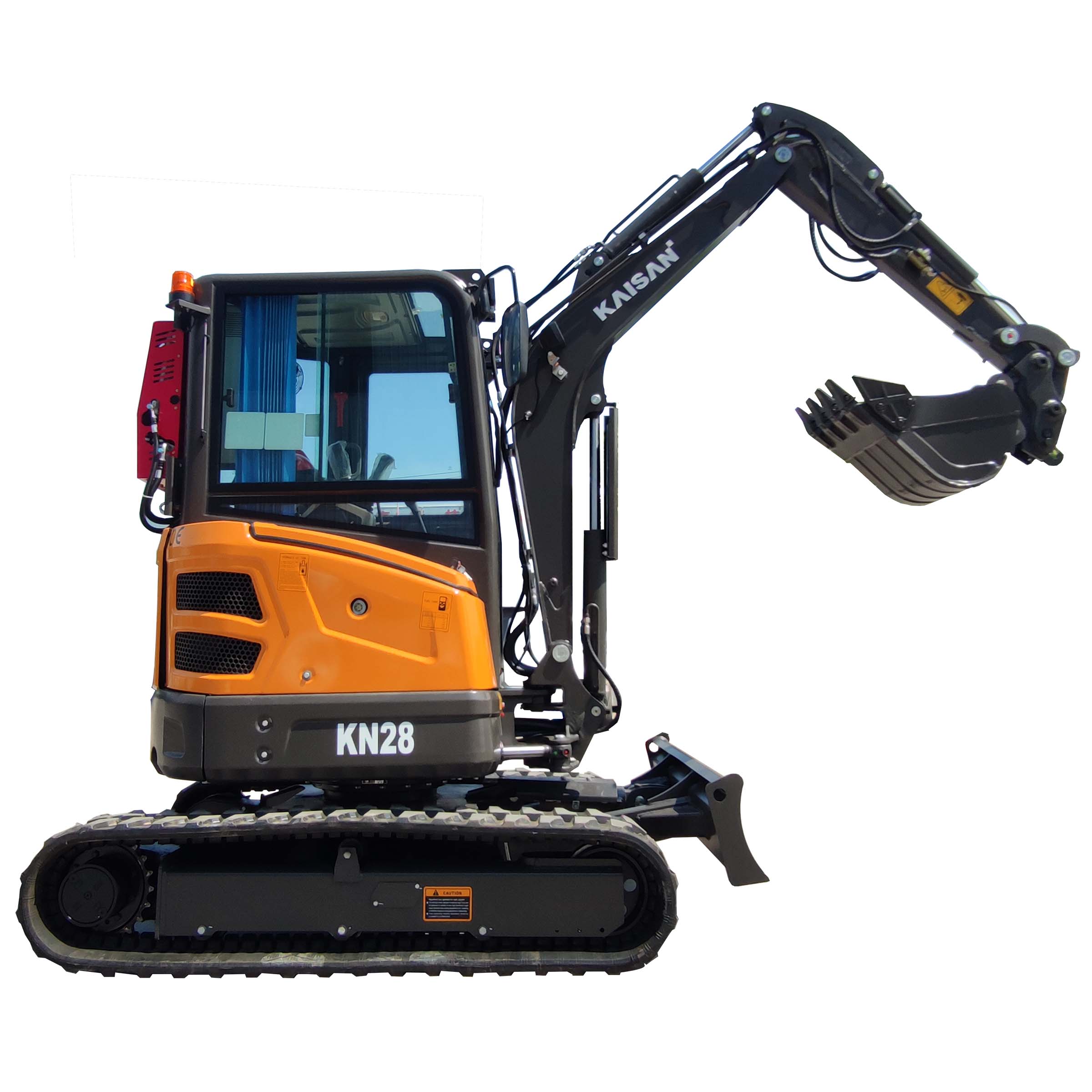

2.8 Ton Excavator

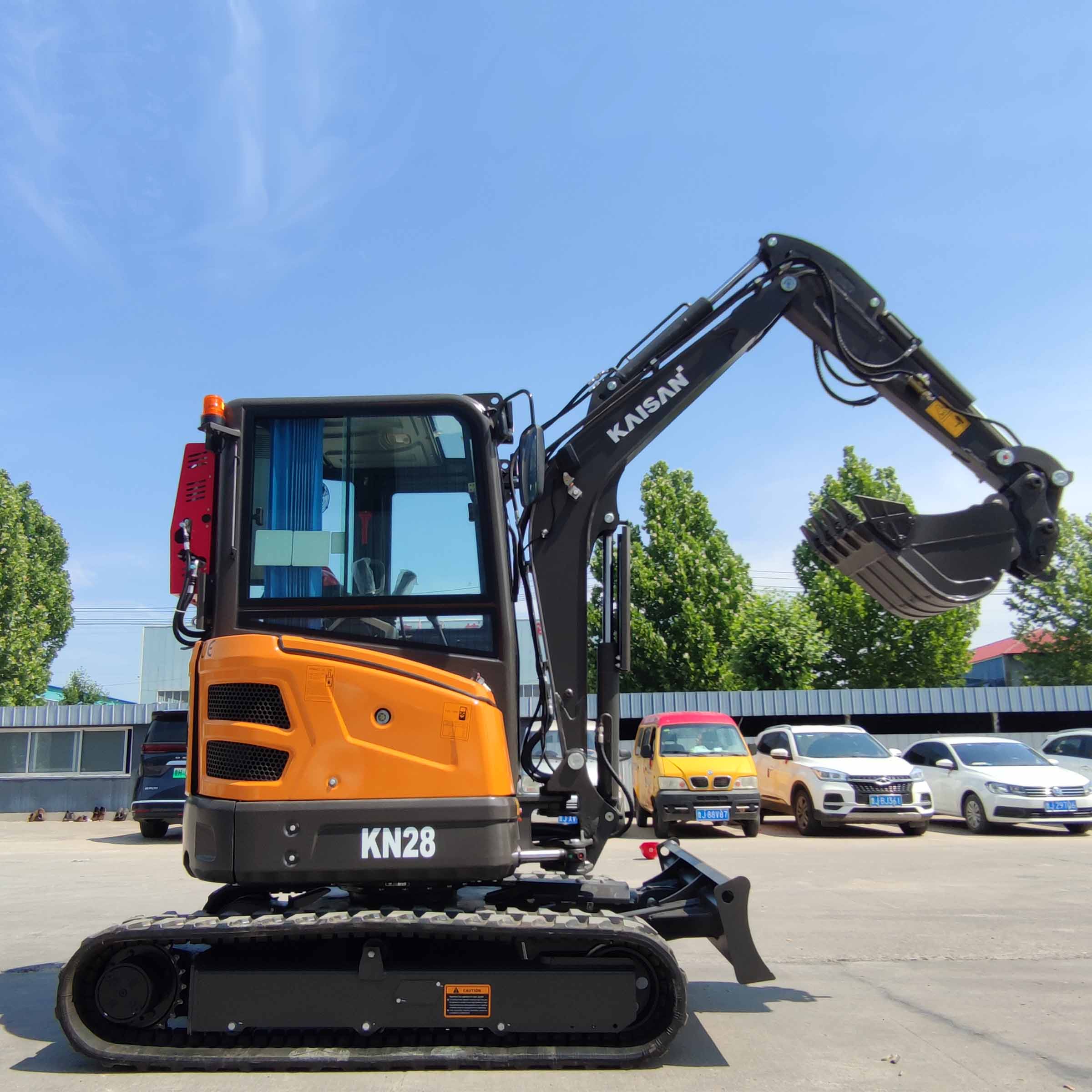

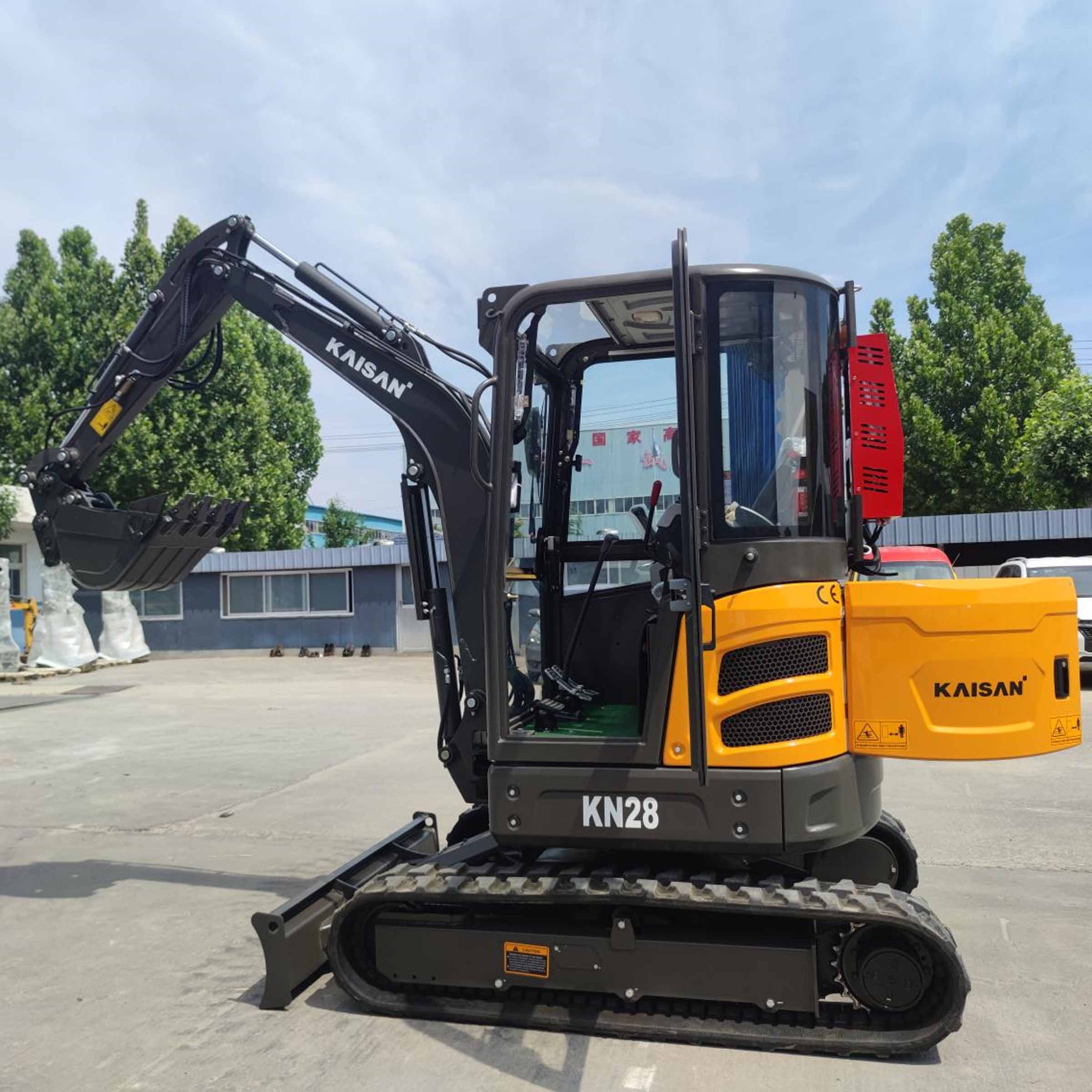

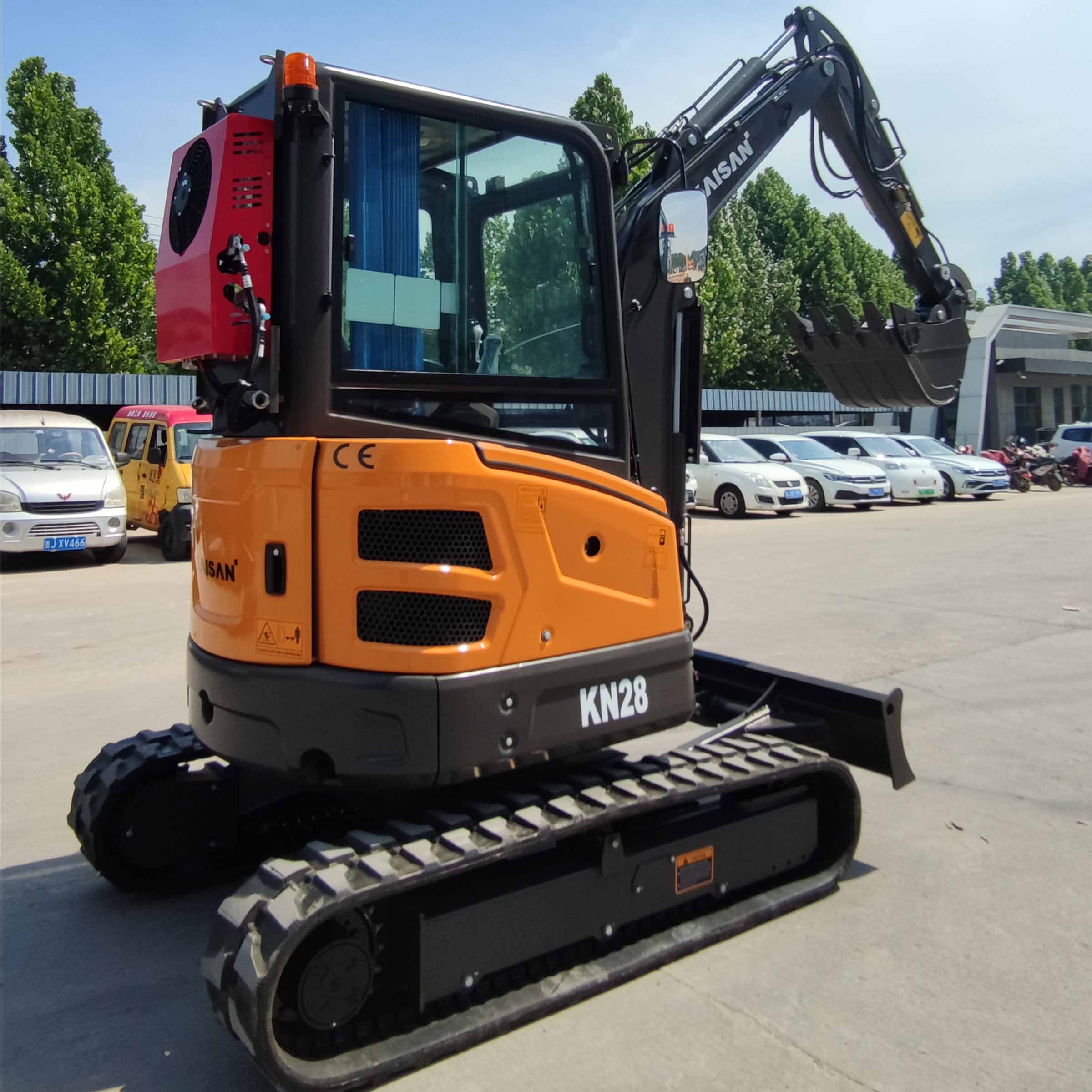

KN28 mini excavator, uses a Japanese KUBOTA D1105 engine, 14KW and closed cabin.

• Powerful engine: The excavator is equipped with Japanese KUBOTA  engine that delivers exceptional power and torque, ensuring maximum efficiency and productivity.

• Compact size: The excavator’s compact size makes it easy to maneuver in tight spaces, allowing you to work in areas inaccessible to larger machines.

• Advanced hydraulic system: The hydraulic system is designed to provide smooth and precise control, allowing you to work with greater accuracy and speed.

  Contact Now E-Mail Telephone WhatsApp
Product Details

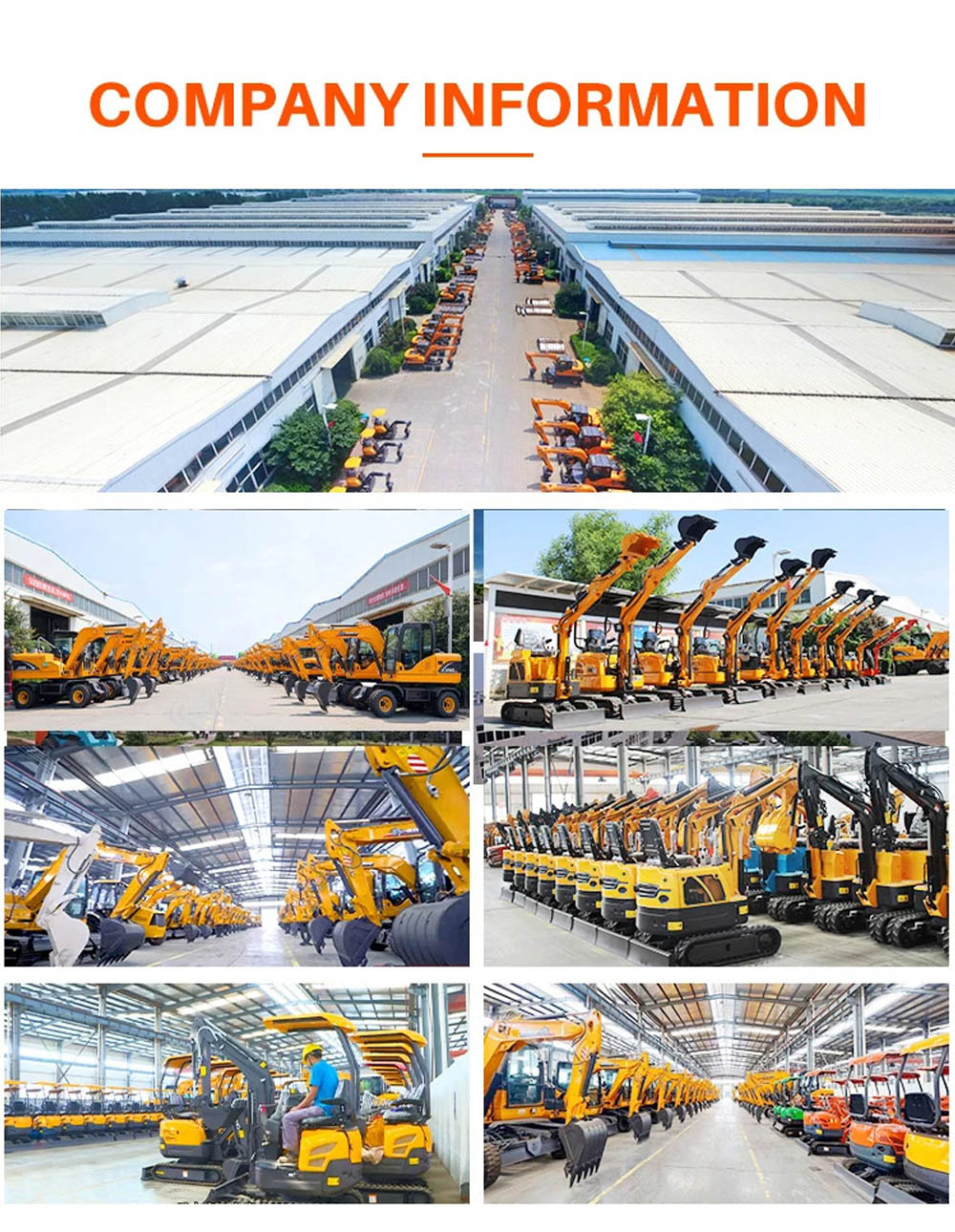

Since 1995, KAISAN factory has been manufacturing wheeled excavators, crawler excavators, and micro dumpers, consistently delivering products that meet stringent quality standards. Our extensive global presence spans over 50 countries and regions, supported by a robust network of representatives in Europe, Australia, New Zealand, South Asia, and beyond. Our wheeled excavators range from 5 to 12 tons, providing versatile solutions for various applications. Meanwhile, our crawler excavators, available from 0.8 tons to 12 tons, are renowned for their exceptional performance and durability, capable of handling the most challenging tasks effortlessly. Additionally, our micro dumpers offer a compact and efficient solution for transporting heavy loads effectively.

2.8 Ton Excavator

Model

KN28

Manufacturer

SHANDONG KAISAN MACHINERY CO.,LTD

Brand

KAISAN

Operating Weight

2750kg

Overall dimension

4195x1550x2480mm

Bucket capacity

0.1cbm

Engine

Engine type

KUBOTA D1105

Rated power/speed

14kw/2200rpm

Voltage of start motor

12V

Starting type

ELECTRIC

PERFORMANCE PARAMETER

Traveling speed

2.6/4.5 km/h

Maximum Grade ability

58%(30°)

Ground pressure

24Kpa

Maximum Bucket digging force

23.5Kn

Maximum Arm digging force

14Kn

Hydraulic system pressure

20.5Mpa

Hydraulic flow

61.6L/min

Boom length

2200mm

Arm length

1300mm

Fuel tank capacity

23L

ydraulic oil tank capacity

24L

Main dimension

Length of rubber track

1565mm

Track gauge

1670mm

Minimum Ground clearance

286mm

Swing radius at tail

860mm

Swing radius at front

2160mm

Height of blade

308mm

Operating range

Maximum Digging height

4427mm

Maximum Dumping height

3005mm

Maximum Digging depth

2830mm

Maximum Vertical digging depth

2530mm

Maximum Digging distance

4835mm

Maximum Lifting height of blade

308mm

Maximum Cutting depth of blade

363mm

Boom swing angle(Left/Right)

69°/  45°

Quotation

KUBOTA engine, closed cabin with A/C, swing boom included

USD 16500 / unit FOB QINGDAO

2.8 Ton Excavator

2.8 Ton Excavator

2.8 Ton Excavator

2.8 Ton Excavator

2.8 Ton Excavator

2.8 Ton Excavator

At KAISAN, our dedicated team of skilled engineers and technicians works diligently to ensure that every machine meets rigorous quality standards. We are deeply committed to upholding the highest levels of quality, safety, and reliability, which has established us as a renowned manufacturer of robust heavy-duty machinery.

All of our products have CE  ISO Certificate

2.8 Ton Excavator



2.8 Ton Excavator

2.8 Ton Excavator

2.8 Ton Excavator

Our Service

1.Positive Customer Experiences

We are committed to ensuring your experience with us is positive, standing firmly behind every product we offer.

2.Pre-sales Service:

Feel free to call us, whether or not we have started working together. You may discover unexpected benefits. Drawing on our extensive experience in sales and production, we can collaboratively discuss the future development of this product line, aiming to enhance profitability and mutual growth.

3.Customized Services

By carefully analyzing the customer's requirements, we assist in selecting the most suitable machine. We provide relevant samples and thoughtful suggestions tailored to production scale and technical specifications.

4.Sales Service

We respond to customer inquiries with helpful and knowledgeable support. Our dedication extends to offering advice on venue selection, cost-saving measures, and optimizing the value of our machines.

5.After-sales Service:

(1)Our technicians offer on-site service for customers within China, supplemented by all-day online support for international customers. According to the requirements of foreign customers, we arrange for technicians to travel abroad for machine installation or maintenance as needed.

(2)During the warranty period, we replace machine parts damaged under normal use at no cost.

(3)After the warranty expires, consider renewing the contract to continue receiving the same level of service enjoyed during the warranty period.

(4)We continually assess our staff's service attitudes to promptly enhance overall service satisfaction.

2.8 Ton Excavator

2.8 Tonne Excavator

Q: Are you a excavator manufacturer or a trading company?

A: We are a excavator manufacturer.



Q: Can you provide customization options for micro dumpers?

A: Yes, we can offer customization options for micro dumpers based on specific requirements. This includes modifications

in engine power, load capacity, dumping mechanisms, and additional features such as specialized attachments or cabin enclosures.



Q: What is your minimum order quantity (MOQ)?

A: Our minimum order quantity (MOQ) is one unit.



Q: What is the lead time for orders?

A: Normally 7-10 days or 15-25 days upon receiving the advance payment.



Q: What are your accepted payment terms?

A: We typically accept payment by letter of credit (L/C) or bank transfer (wire transfer).



Q: Do you provide product warranties?

A: Yes, normally 2000 hours OR 1 year.
