Micro Crawler Digger

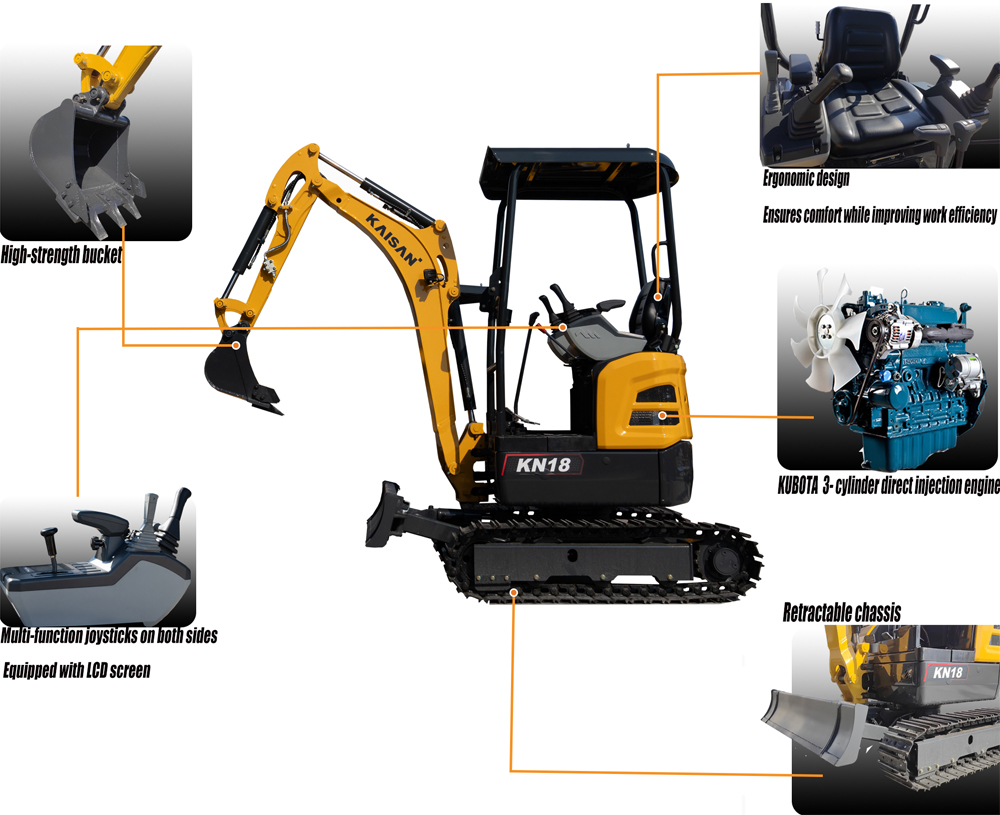

1.Compact and Versatile Design

Small machine with full functionality

Zero tail and swing boom for operations in narrow spaces

No blind spots for improved safety and precision

2.Multi-Purpose Capabilities

Standard multi-purpose pipeline included

Can be equipped with additional attachments such as a hydraulic hammer

3.Powerful and Eco-Friendly Engine

High-power engine that meets Euro Stage V and EPA Tier 4 emission standards

4.Efficient Hydraulic System

Load-sensitive hydraulic system

High system pressure for efficiency

Fast action response for improved performance

5.User-Friendly Control

Full hydraulic pilot control

Excellent control performance for ease of operation


  Contact Now E-Mail Telephone WhatsApp
Product Details

Since 1995, KAISAN has been dedicated to producing high-quality wheeled excavators, crawler excavators, and mini dumpers that adhere to rigorous standards. Our equipment is widely recognized for its reliability and exceptional performance, with exports extending to over 50 countries and regions globally. We have built a robust network of representatives across Europe, Australia, New Zealand, South Asia, and beyond.

Our wheeled excavators, ranging from 5 to 12 tons, are known for their remarkable versatility and efficiency across various applications. Our crawler excavators, available from 0.8 to 12 tons, are praised for their durability and ability to handle challenging tasks with ease. Complementing our lineup, our mini dumpers offer a compact and effective solution for transporting heavy loads, rounding out our extensive machinery range.

Micro Crawler Digger

Micro Crawler Digger


Operating Weight

1800kg

Digging bucket capacity

0.04cbm

Engine

KUBOTA D902

Rated power

11.8/2300 kw/rpm

Displacement

0.898L

Hydraulic system Type

Variable pist on pump

Flow rate

64.4L/min

MAIN DEMENSIONS

Overall dimension( LxWxH)

3575x990x2405 mm

OPERATING RANGE

Max. Digging depth

2270 mm

Max. Vertical digging depth

1910 mm

Max. Digging height

3570 mm

Max. Dumping height

2480 mm

Max. Digging distance at ground level

3840 mm

Min.  Digging distance

3910 mm

Max. lifting height of bulldozer

280 mm

Max. cutting depth of bulldozer

190 mm

Micro Crawler Digger

Micro Crawler Digger

Micro Crawler Digger

At KAISAN, our commitment is to meet the diverse needs of our global customers by delivering machines that offer outstanding reliability, performance, and satisfaction with every unit we produce.

Micro Crawler Digger

Micro Crawler Digger

Micro Crawler Digger

Micro Crawler Digger

Micro Crawler Digger

1.Commitment to Positive Experiences: We are committed to ensuring that every interaction with us is a positive one, standing firmly behind our products to guarantee your complete satisfaction.

2.Pre-Sale Consultation: Don’t hesitate to reach out even if you’re not ready to make a decision. You might discover unexpected advantages. With our extensive expertise in sales and production, we can explore strategies to optimize this product line, enhance profitability, and achieve shared success.

3.Customized Services: We evaluate your specific needs to help you select the most suitable machine. We offer relevant samples and tailored recommendations based on your production scale and technical requirements.

4.Sales Support: We provide practical and insightful advice for your inquiries, including guidance on venue selection, cost-saving strategies, and maximizing the value of our machines.

5.Comprehensive After-Sales Service:

(1)On-Site and Online Support: Our technicians offer on-site service within China and 24/7 online support for international clients. We can also arrange for technicians to travel abroad for installation or maintenance if needed.

(2)Warranty Coverage: We provide free replacement of parts damaged under normal use during the warranty period.

(3)Post-Warranty Services: Continued support is available through contract renewals to ensure ongoing assistance.

(4)Service Quality Monitoring: We regularly evaluate our service quality to continuously enhance customer satisfaction.

 Micro Crawler Digger

Micro Crawler Digger

Q: Are you a manufacturer or a trading company?

A: We are a manufacturer.


Q: Can you provide customization options for mini  dumpers?

A: Yes, we can offer customization options for mini dumpers based on specific requirements. This includes modifications

in engine power, load capacity, dumping mechanisms, and additional features such as cabin enclosures or specialized attachments.



Q: What is your minimum order quantity (MOQ)?

A: Our MOQ is one unit.



Q: What is the lead time for orders?

A: Normally 7-10 days or 15-25 days upon receiving the advance payment.



Q: What are your accepted payment terms?

A: We typically accept payment by bank transfer (wire transfer) or letter of credit (L/C).



Q: Do you provide product warranties?

A: Yes, normally 1 year OR 2000 hours.
