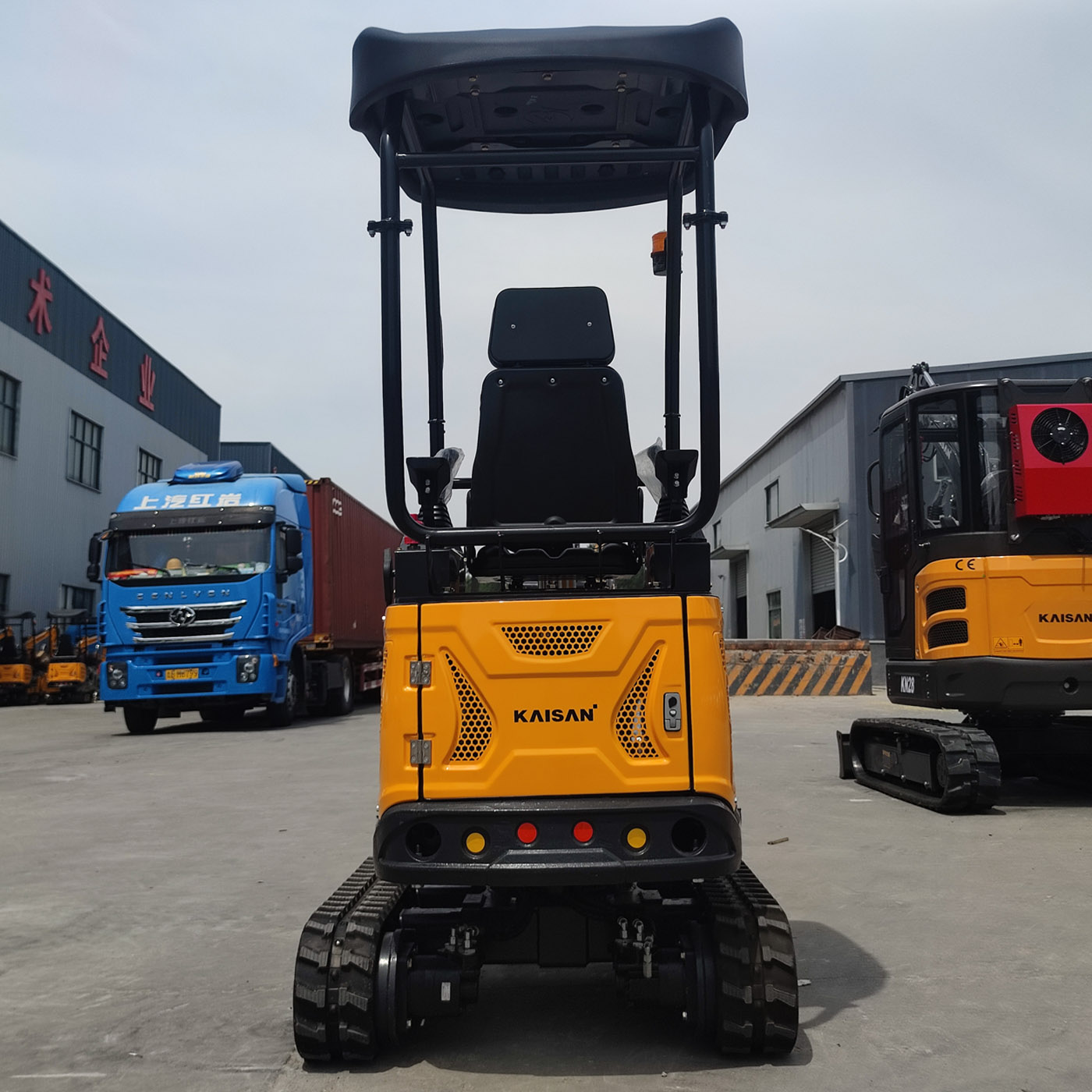

1.2 Tonne Micro Crawler Excavator Machine

This excavator is designed for small works, small projects, gardens, farmland, municipal works, vegetable greenhouses, and digging trenches It has with Kubota engine, is simple design, easy to maintain. It can be added many accessories like Auger, Wood Grab, Rake, Ripper, etc.

1.Machine weight:1080KG
2.Engine:Kubota D722 three cylinder engine,11.8kw.Max

3.Digging bucket capacity:0.025 cbm

4.Max Digging depth is 1590mm

5.Max digging height is 2620mm

  Contact Now E-Mail Telephone WhatsApp
Product Details

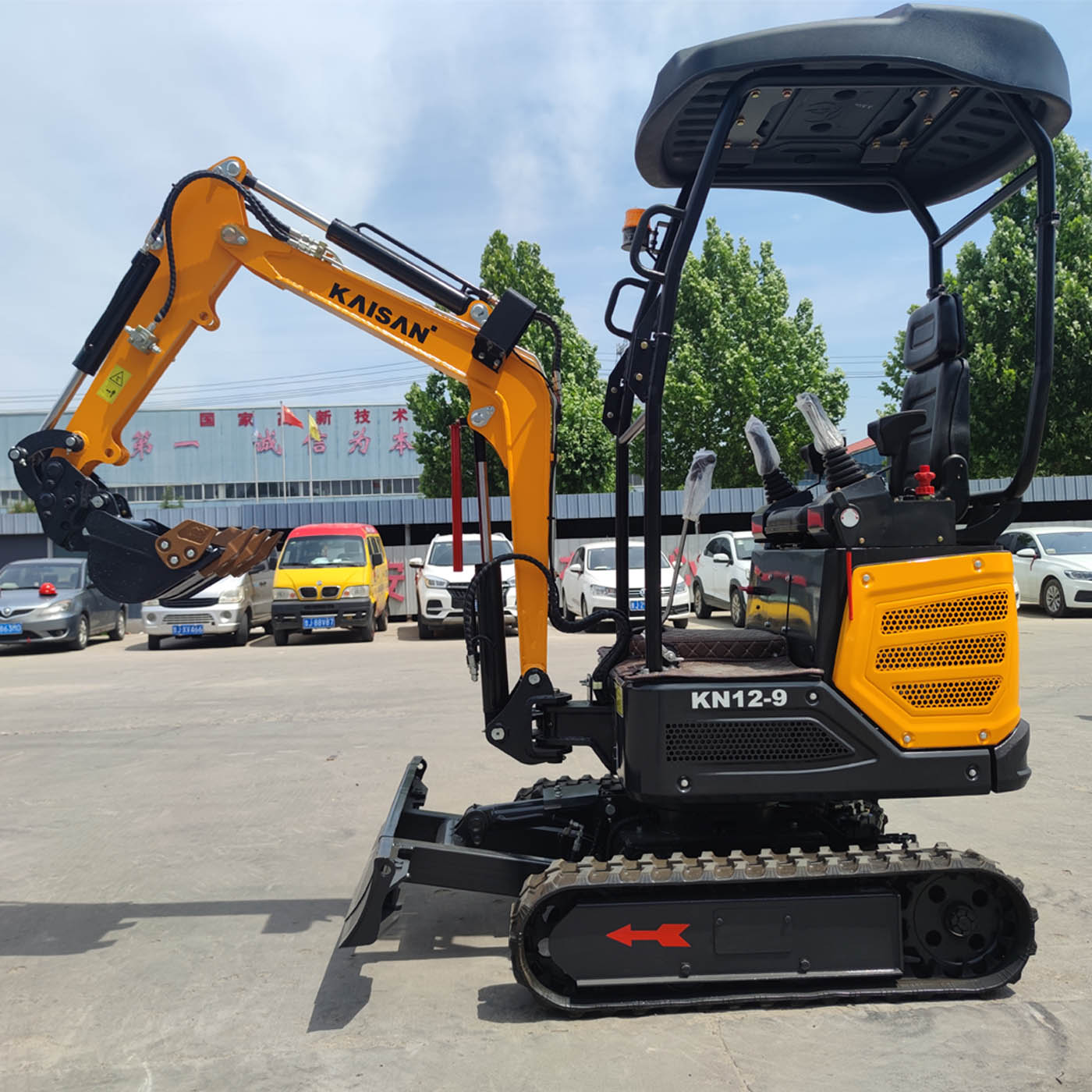

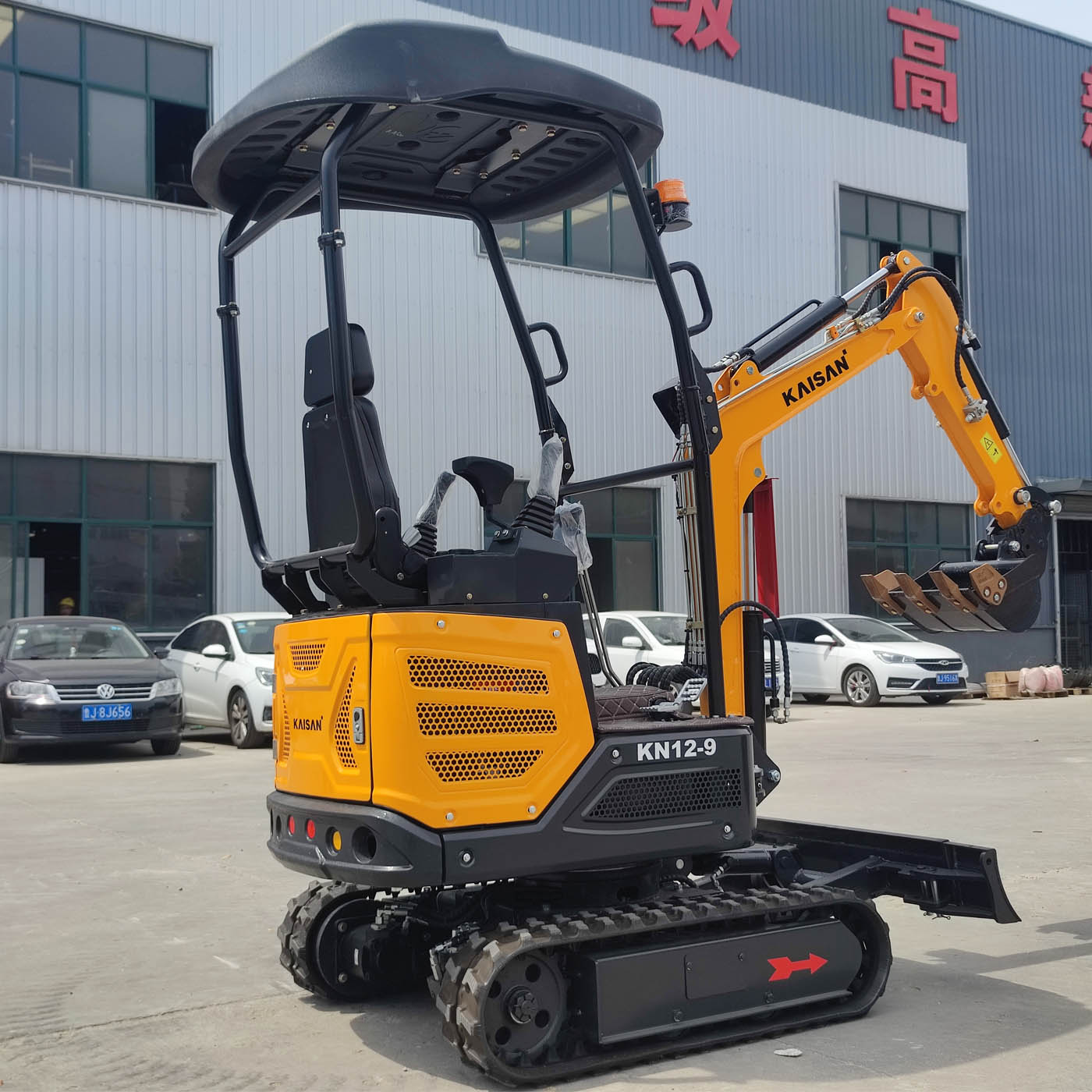

KN12-9 Mini multi function excavator equipped with Japan's Kubota three-cylinder engine. 1.2 Tonne Micro Crawler Excavator Machine1.2 Tonne Micro Crawler Excavator Machine

PARAMETERS


Model

KN12-9

Operating Weight

1080kg

Digging bucket capacity

0.025cbm

Bucket width

380mm

Engine

Kubota D722

Rated power

11.8kw /2300r/min

Swing motor

Eaton 2K-195

Traveling motor

EATON

Travel speed

1.5km/h

MAIN DEMENSIONS


Overall dimension( LxWxH)

2170x950x2270 mm

Wheelbase

910mm

Total length of track

1235mm

Platform ground clearance

460mm

Platform back turning radius

660mm

Chassis width

950/800mm

OPERATING RANGE


Max. Digging depth

1580 mm

Max. Vertical digging depth

1580mm

Max. Digging height

2620mm

Max. Dumping height

2000mm

Max. Digging radius on ground

3040mm

Min. Rotation radius

1510 mm

1.2 Tonne Micro Crawler Excavator Machine

1.2 Tonne Micro Crawler Excavator Machine

1.2 Tonne Micro Crawler Excavator Machine

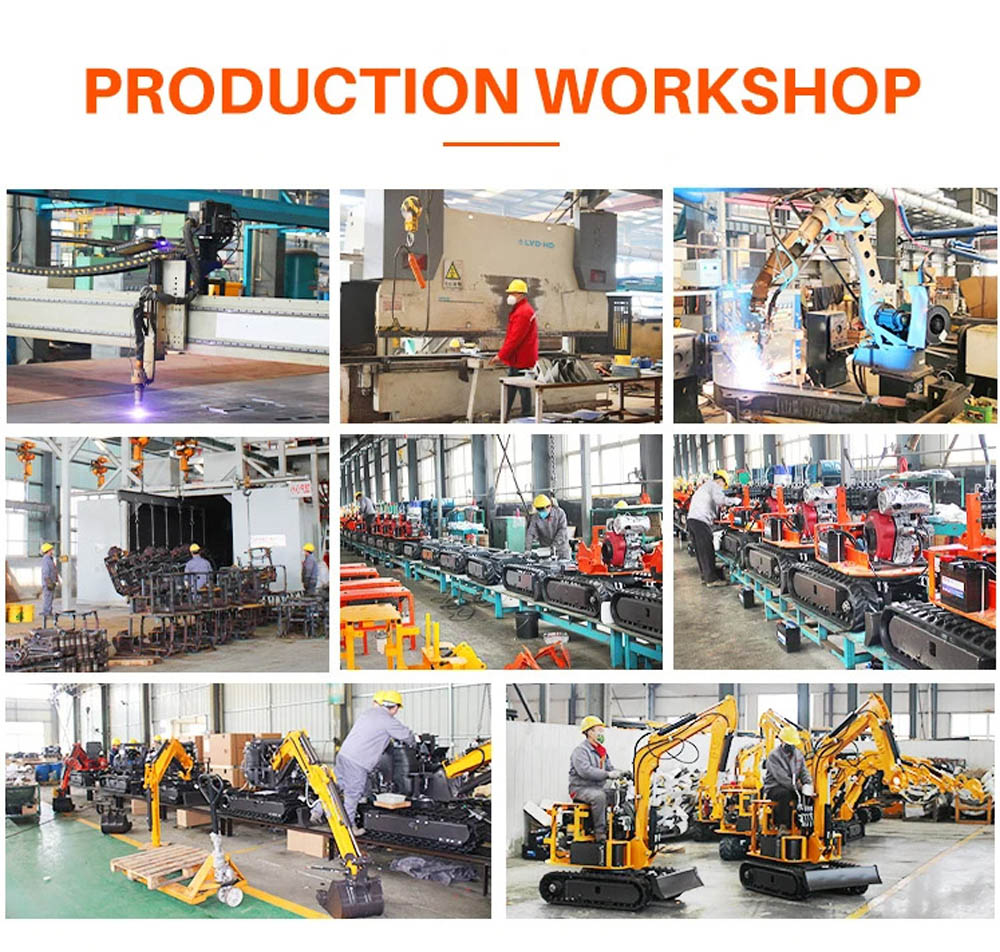

Established in 1995, our factory has been a leading manufacturer of wheeled excavators, crawler excavators, and mini dumpers, consistently delivering products that adhere to international standards. Our products are exported to over 50 countries and regions worldwide, facilitated by a network of representatives in Europe, Australia, New Zealand, South Asia, and other global markets. Featuring wheeled excavators ranging from 5 tons to 12 tons and crawler excavators from 0.8 tons to 12 tons, our machines are known for their robust performance and durability, ensuring reliability in diverse working conditions. Moreover, our mini dumpers provide a compact and efficient solution for heavy-duty material handling needs.

Our dedicated team of skilled engineers and technicians strives tirelessly to uphold stringent quality standards across all our machines. With a steadfast commitment to excellence, safety, and dependability, we have established ourselves as a premier manufacturer of robust machinery.

1.2 Tonne Micro Crawler Excavator Machine

1.2 Tonne Micro Crawler Excavator Machine

1.2 Tonne Micro Crawler Excavator Machine

1.2 Tonne Micro Crawler Excavator Machine

1.2 Tonne Micro Crawler Excavator Machine

1.Ensuring Positive Experiences: We strive to ensure your experience with us is positive, standing firmly behind every product we sell.

2.Pre-Sale Consultation: Contact us regardless of whether we proceed with a partnership. You can expect valuable insights based on our extensive experience in sales and production. Together, we can discuss potential advancements that benefit both parties.

3.Customized Solutions: By carefully assessing your requirements, we assist in selecting the most suitable machines. We provide relevant samples and thoughtful suggestions tailored to your production scale and technical needs.

4.Sales Support: We respond promptly and insightfully to customer inquiries, dedicating ourselves to exemplary customer service. This includes venue selection advice, cost-saving strategies, and maximizing the value of our machines.

5.Comprehensive After-Sales Service:

      (1)On-site technical support is available for customers in China, with all-day online assistance provided globally.

      (2)We arrange for technicians to travel abroad for installations or maintenance as required by our international customers.

      (3)During the warranty period, we replace damaged machine parts under normal use at no charge.

      (4)Post-warranty, we offer contract renewal options ensuring continued exceptional service.

      (5)We promptly evaluate staff service attitudes to enhance overall customer satisfaction.


1.2 Tonne Micro Crawler Excavator Machine

1.2 Tonne Micro Crawler Excavator Machine

Q: Are you a manufacturer or a trading company?

A: We are a manufacturer.

Q: Can you provide customization options for mini  dumpers?

A: Yes, we can offer customization options for mini dumpers based on specific requirements. This includes modifications

in engine power, load capacity, dumping mechanisms, and additional features such as cabin enclosures or specialized attachments.



Q: What is your minimum order quantity (MOQ)?

A: Our MOQ is one unit.



Q: What is the lead time for orders?

A: Normally 7-10 days or 15-25 days upon receiving the advance payment.



Q: What are your accepted payment terms?

A: We typically accept payment by bank transfer (wire transfer) or letter of credit (L/C).



Q: Do you provide product warranties?

A: Yes, normally 1 year OR 2000 hours.
